DESCRIPTION
Waldmann Part Number: 113514000-00722108

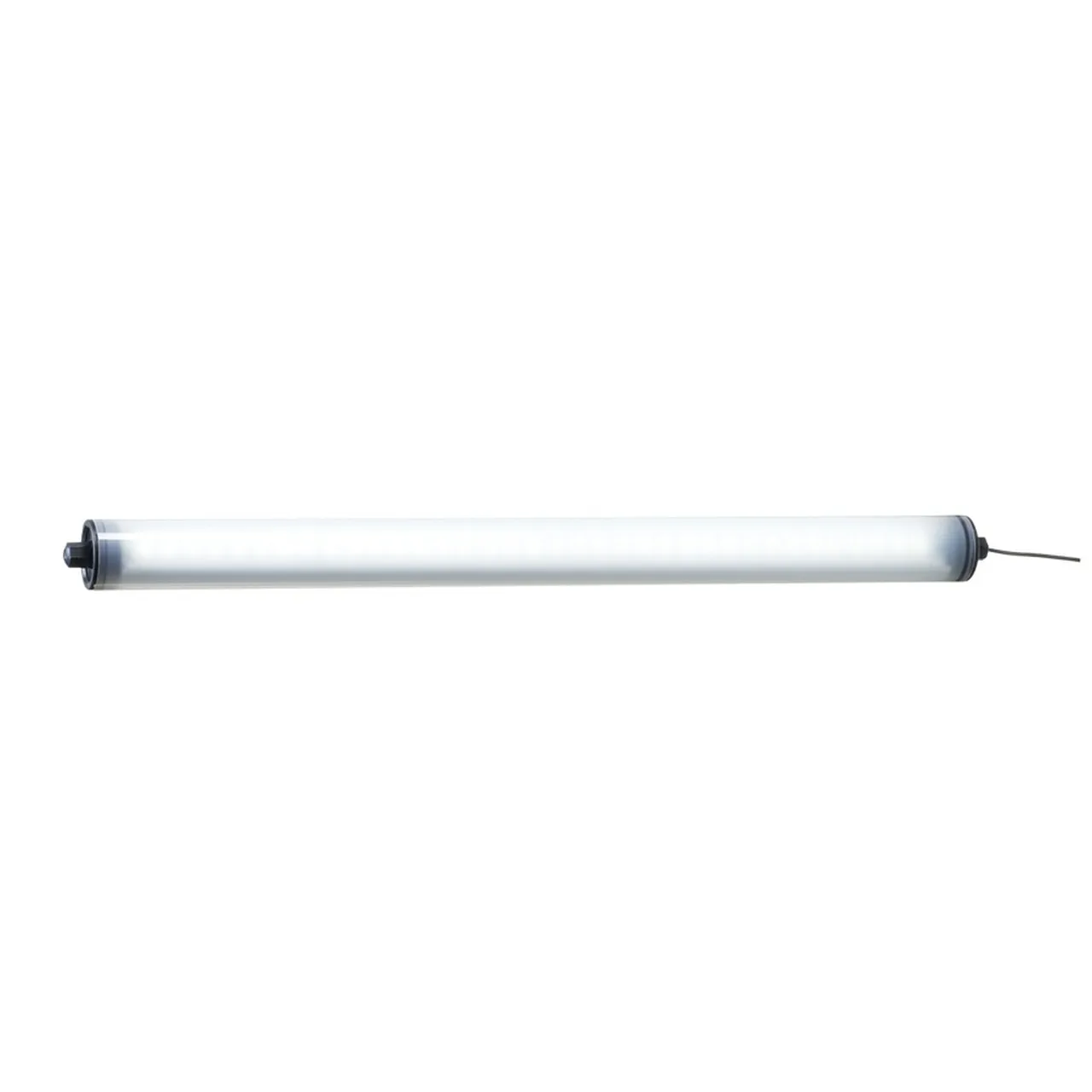

Waldmann's RL70LE takes the traditional model of the industrial tube light and improves it with the added advantages that LED technology brings to the industry. Strong borosilicate glass, impact-resistant acrylic, or polycarbonate surrounds, sealed IP67 construction, and a bright 5000K light, assure a solid, reliable product. 50,000 hour of maintenance-free LED operation expands lamp life significantly from fluorescents, making it ideal for those hard-to-reach areas.
- Thru-Wire; For daisy chaining many fixtures together
- Premium LED materials and technology offer 50,000 hours of maintenance-free operation
- Clear acrylic is strong for machining and other industrial environments
- 5000K color temperature for clear, bright vision
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | Waldmann |
| Series: | RL70LE LED |
| Model: | RL70LE 36 |
| Current AC/DC: | DC |
| Voltage: | 24 |
| Length (in): | 20 |
| Width (in): | 2.75 |
| Bulb: | LED |
| Mounting Type: | Bracket |
| Wattage: | 19 |
| Lumens: | 1400 |
| Color Temperature: | 5000K |
| Color Rendering Index (CRI): | 80 |
| Lens Material: | Acrylic |
| Lens Style: | Clear |
| Protection Index: | IP67 |
| Operation: | Thru-Wire |
| Connection: | No Cable |
| Certification: | ETL/cETL Approved |
| Product Warranty: | 5 Years |
ACCESSORIES
Mounting Options:
|
MOUNTING BRACKET, Straight, Galv. Steel, Neoprene Inserts. Each |
|
|
|
MOUNTING BRACKET, Long-L, Galv. Steel, Neoprene Inserts, Each |
|
|
|
MOUNTING BRACKET, Short-L, Galv. Steel, Neoprene Inserts, Each |
|
|
|
MOUNTING BRACKET, Straight, Galv. Steel, Profiled Rubber Insert, Each |
|
|
|
MOUNTING BRACKET, Long-L, Galv. Steel, Profiled Rubber Insert, Each |
|
|
|
MOUNTING BRACKET, Short-L, Galv. Steel, Profiled Rubber Insert, Each |
|
|
|
MOUNTING BRACKET, Straight, Stainless Steel, Neoprene Inserts, Each |
|
|
|
MOUNTING BRACKET, Long-L, Stainless Steel, Neoprene Inserts, Each |
|
|
|
MOUNTING BRACKET, Short-L, Stainless Steel, Neoprene Inserts, Each |
|
|
|
MOUNTING BRACKET, Straight, Stainless Steel, Profiled Rubber Inserts, Each |
|
|
|
MOUNTING BRACKET, Long-L, Stainless Steel, Profiled Rubber Inserts, Each |
||
|
MOUNTING BRACKET, Short-L, Stainless Steel, Profiled Rubber Inserts, Each |
|
Power Options:
|
OPERATING DEVICE: Max. Wattage = 20W to run at 100-277V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 50W to run at 120V, 50/60Hz |
|
|
OPERATING DEVICE: Max. Wattage = 96W to run at 120-277V, 50/60Hz |
|
