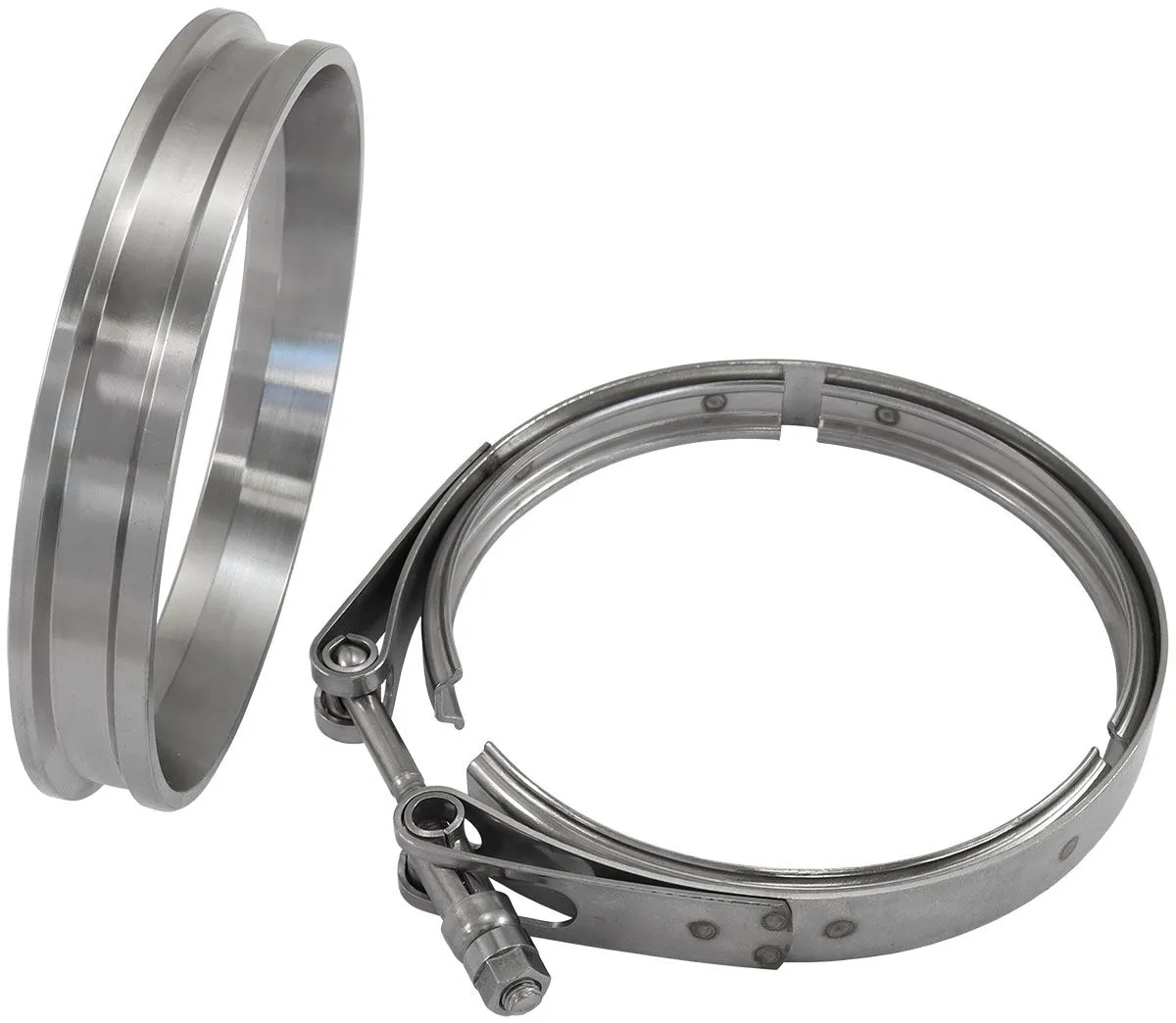

AF8080-1034 - 4.50" O.D SS BOOSTED VBAND KIT

Suit Boosted 7675 & 8077 Dual V-Band Turbochargers

Part Number: AF8080-1034

These Boosted by Aeroflow range of V-Band kits are specifically designed for the range of Boosted turbochargers. Made from either 304 stainless steel or aluminium. These v-band may also suit other turbochargers please ensure to check all measurements provided.

Note:
Moly grease all threads before installation and removal.

Material is 304 Stainless Steel.

Suits Boosted Turbocharger Turbine Outlet Flange.

Replacement V-band clamp is AF8080-3001.

AF8080-1034 Aeroflow Performance V-Band Suits Boosted Turbos below:


AF8005-4013 / AF8005-4013BLK

AF8005-4015 / AF8005-4015BLK
Suits Boosted Rear Housings below :


AF8050-1029

Specifications: Measurements of V-Band flange:
- V-Band Weld on Ferrule Inside Diameter - 92.4mm (3-5/8").
- V-Band Weld on Ferrule Outside Diameter - 114.3mm (4-1/2").
- Suits Exhaust Tube Inside Diameter - 88.6mm (3-31/64")
- Suits Exhaust Tube Outside Diameter - 98mm (3-27/32").
